Product Details:
|
| Material: | Carbide | Sample Or Spot Goods: | Spot Goods |
|---|---|---|---|
| Processing: | Finishing | ||
| High Light: | Finishing Indexable Slotting Cutter,High Hardness Indexable Slotting Cutter,High Hardness Carbide Cutter Tool |
||
Indexable carbide insert slotting Cutters
Introduction

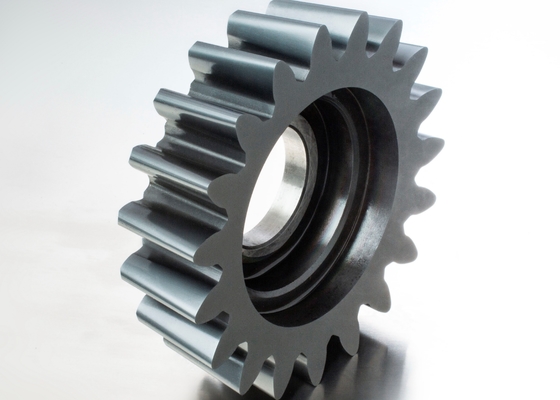

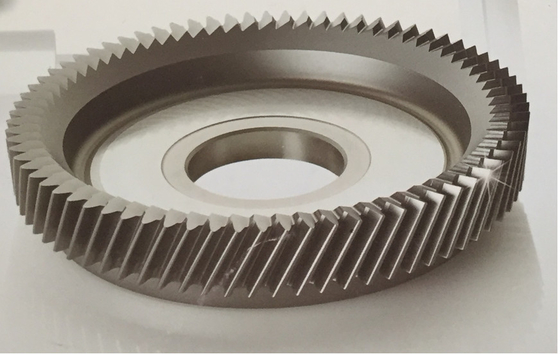

A gear shaper is a gear-shaped or rack-shaped gear machining tool. The gear shaper is used to process the internal and external meshing spur and helical cylindrical gears according to the generating method.
The characteristic of the gear shaper is that it can process gears with shoulders, multi-stage gears and herringbone gears without empty grooves. The special-shaped gear shaper can also machine various other profile workpieces, such as cams and internal splines, etc.
| Coating type | color | hardness | thickness | CIF | highest temperature | |
| TiN | GOLDEN YELLOW | 2400 | 1~7 | 0.35 | 600 | |
| TiCN | BLUISH-GREY | 3700 | 1~4 | 0.2 | 400 | |
| TiCN-MP | RED-COPPER | 3200 | 1~4 | 0.2 | 400 | |
| TiALN | PURPLISH-RED | 3300 | 1~4 | 0.4 | 800 | |
| CrN | SLIVER | 1800 | 1~7 | 0.3 | 700 | |
| ACO | DARK GREY | 4400 | 1~4 | 0.3 | 1100 | |
| TiCrN | SLIVER/GOLD | 3000 | 1~7 | 0.4 | 600 | |
| XT | GREY-BLACK | 4100 | 0.5~6 | 0.25 | 1100 | |
| DLC | GREY-BLACK | 2000 | 1~3 | 0.1 | 400 | |
| MDT | ROSE-PURPLE | 4000 | 1~4 | 0.25 | 800 | |
