Product Details:
|
| Grade: | YC45 | Coating: | Uncoated |
|---|---|---|---|
| Material: | Tungsten Carbide | Type: | Turning |
| High Light: | Uncoated CBN Turning Insert,Wear Resistant CBN Turning Insert,Uncoated Tungsten Carbide Insert |
||

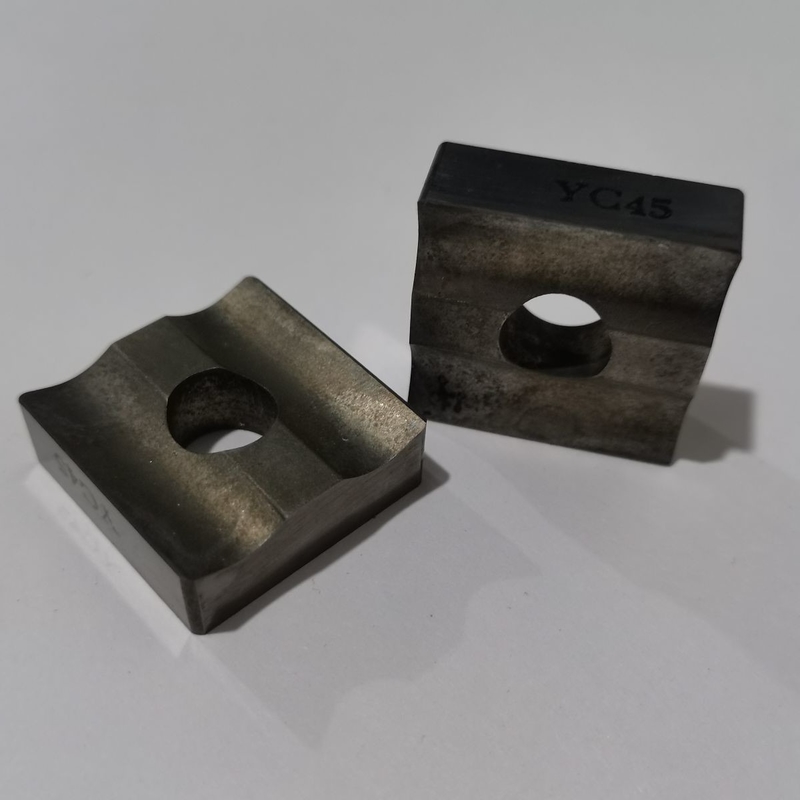

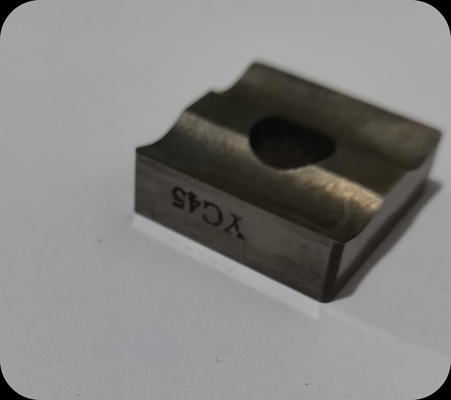

CBN Turning Insert 42510H10
1. The performance advantages of CBN tools.
(1) It has high hardness and wear resistance. The microhardness of CBN single crystal is HV8000 ~ 9000, which is the second highest hardness material currently known. The hardness of CBN composite sheet Generally HV3000 ~ 5000.
(2) It has high thermal stability and high temperature hardness. The heat resistance of CBN can reach 1400-1500 ℃, and the hardness at 800 ℃ is the normal temperature hardness of Al2O3/TiC ceramics.
(3) High chemical stability. CBN has high anti-oxidation ability, no oxidation phenomenon occurs at 1000 °C, and no chemical reaction occurs with iron-based materials at 1200 to 1300 °C.
(4) It has good thermal conductivity and low friction coefficient. CBN tools are strongly interrupted machining
| type | dimension(mm) | Basic grades | ||||||||||||||||||||||||||
| ∅D Tol. | C ±0.13 | ∅d ±0.13 | r | a≈ | P | M | K | |||||||||||||||||||||
| 41005H | 10±0.08 | 3.5 | 4.2 | 0.5 | 2.4 | YNG151 | YT05 | YT15 | YC201 | YT14 | YT5 | YC45 | YS8 | YS2T | YW1 | YW3 | YM201 | YW2 | YM30 | YG3X | YG3 | YM201 | YG6X | YG6 | YD201 | YG8 | ||
| 41305H | 13±0.13 | 4.5 | 5.2 | 0.5 | 3.4 | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ||||||||||||||||
| 41605H | 16±0.18 | 5.5 | 6.2 | 0.5 | 4.4 | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ||||||||||||||||
| 41605H6 | 16±0.18 | 5.5 | 6.2 | 0.5 | 6 | ✬ | ✬ | ✬ | ✬ | |||||||||||||||||||
| 41905H | 19±0.18 | 7.0 | 7.2 | 0.5 | 5.4 | ✬ | ✬ | ✬ | ||||||||||||||||||||
| 41910H | 19±0.18 | 7.0 | 7.2 | 1.0 | 5.4 | ✭ | ✬ | ○ | ||||||||||||||||||||
| 41910H7 | 19±0.19 | 7.0 | 7.2 | 1.0 | 7 | ✬ | ○ | ✬ | ||||||||||||||||||||
| 42210H8 | 22±0.25 | 8.5 | 8.2 | 1.0 | 8 | ✬ | ○ | ✬ | ||||||||||||||||||||
| 42510H7 | 25±0.25 | 9.5 | 8.2 | 1.0 | 7 | ✬ | ○ | ✬ | ||||||||||||||||||||
| 42510H8 | 25±0.25 | 10.5 | 8.2 | 1.0 | 8 | ✬ | ✬ | |||||||||||||||||||||
| 42510H10 | 25±0.26 | 11.5 | 9.12 | 1.0 | 10 | ✬ | ✬ | |||||||||||||||||||||
