Product Details:
|
| Sample Or Spot Goods: | Spot Goods | Material: | Cermet |
|---|---|---|---|
| Color: | SLIVER GREY | ||
| High Light: | Coated Carbide Turning Inserts,Cermet Carbide Turning Inserts,Coated Carbide Machining Inserts |
||

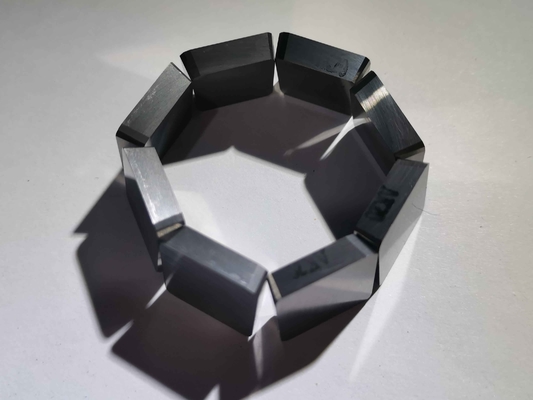

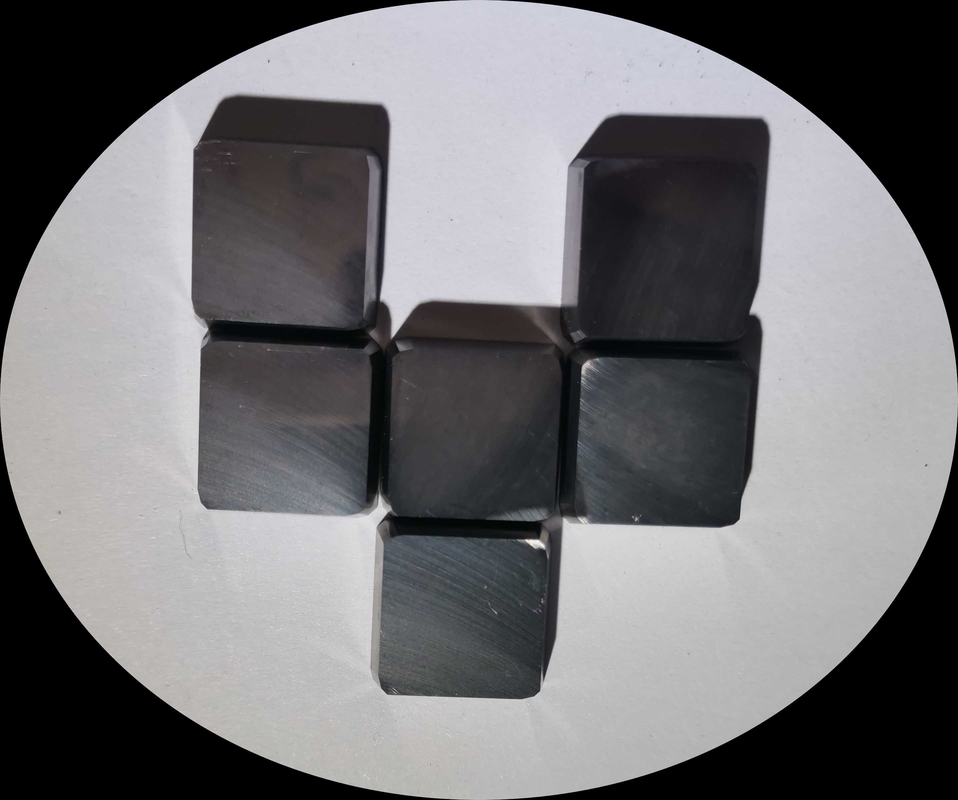

Coated Cermet Turning Inserts
Determined directly from the letters on the blade, there are the following:
YG tungsten-cobalt-based cemented carbide <Machining brittle materials>
YT Tungsten Cobalt Titanium Cemented Carbide <Machining Steel or Tough Material>
TW Tungsten Cobalt Titanium Niobium Cemented Carbide <Machining all kinds of cast iron and special alloy steel>
CNC inserts are the general term for indexable turning inserts, which are the mainstream products in modern metal cutting applications. Mainly used in metal turning, milling, cutting and grooving, thread turning and other fields. According to the material, it can be divided into coated blade, metal ceramic blade, non-metal ceramic blade, carbide blade, superhard blade, etc.
It is characterized by high efficiency and high wear resistance, and the processing efficiency is more than 4 times higher than that of traditional welded blades and alloy blades. With the continuous progress of coating technology, breakthroughs in key technologies of wear resistance and high temperature resistance will further improve efficiency and reduce processing costs.
| Cutting Edge Length | ||||||
| inscribed circle | Blade shape | |||||
| C | D | S | T | V | W | |
| 3.97 | 06 | |||||
| 5.0 | ||||||
| 5.56 | 09 | |||||
| 6.0 | ||||||
| 6.35 | 06 | 07 | 11 | 11 | ||
| 8.0 | ||||||
| 9.53 | 09 | 11 | 09 | 16 | 16 | 06 |
| 10.00 | ||||||
| 12.00 | ||||||
| 12.70 | 12 | 15 | 12 | 22 | 22 | 08 |
| 15.88 | 16 | 15 | 27 | |||
| 16.00 | 19 | |||||
| 19.05 | 19 | 19 | 33 | |||
| 20.00 | ||||||
| 25.00 | 25 | 25 | ||||
| 25.40 | 25 | |||||
| 31.75 | ||||||
| 32.00 | ||||||
