Product Details:
|
| Type: | Carbide Hob For Bevel Gear Cutting | Name: | Carbide Hob With Coating For Gleason Phoenix Cutting Machine For Bevel Gear Cutting |
|---|---|---|---|
| Dimension: | Φ32×L30×Ф13 M1 α21° | Coating: | With Coating |
| Material: | Tungsten Carbide / High Speed Steel | Standard: | German Standard |
| Precision: | AAA,AA,DIN3968 | Application: | To Be Applied On Gleason Phoenix 280C/600HC/1000HC |
| High Light: | Bevel Gear Cutting Carbide Hob,Gleason Phoenix Cutting Machine Carbide Hob,Coating Bevel Gear Hob Cutters |
||

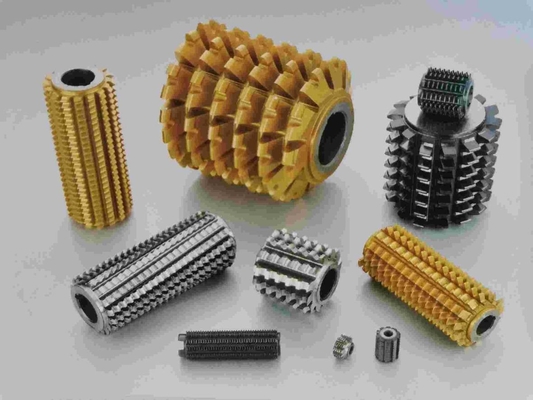

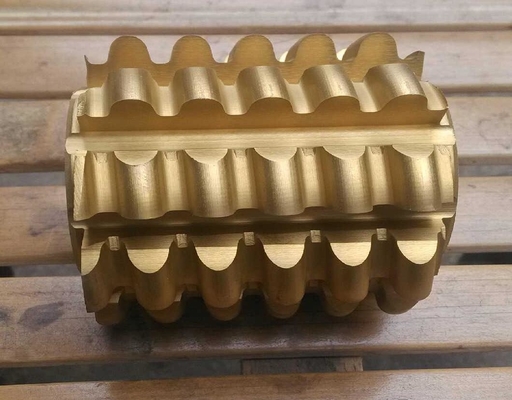

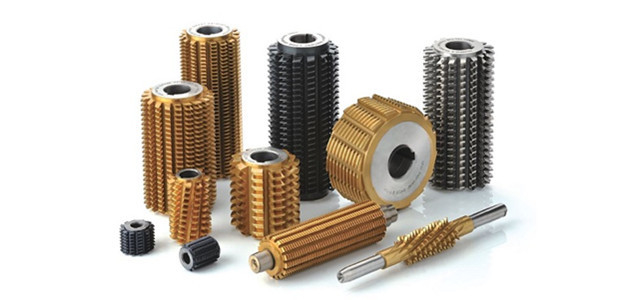

Gear Hob
Module: m0.25-m30,DP,CP, Single/multi starts, Straight/helix angle for any kind of hobs, and suitable for dry and wet cutting.
Types: Gear,Spline,Worm Gear,Chain Sprocket,Rack,Special Form
Patterns: Finishing,Roughing,Pre-shaving,Pre-grinding
Precision: AAA,AA, DIN3968
Material: HSS M2,M35,S390,Carbide or high speed steel
Coating: TiN,AP,AT
| specification | ||||||
| m | ∅D | ∅d | L | ∅D1 | L | |
| 8type | 0.1~0.15 | 25 | 8 | 8 | 17.5 | 0.5 |
| 0.2~0.3 | 25 | 8 | 10 | 17.5 | 0.5 | |
| 0.35~0.8 | 25 | 8 | 12 | 17.5 | 0.5 | |
| 10type | 0.2~0.25 | 32 | 10 | 12 | 22.5 | 1 |
| 0.3~0.45 | 32 | 10 | 15 | 22.5 | 1 | |
| 0.5~1.0 | 32 | 10 | 20 | 22.5 | 1 | |
