Product Details:
|
| Name: | Carbide Gear Hob With Coating For Bevel Gear Cutting From China Factory | Material: | Tungsten Carbide / High Speed Steel / High Cobalt Steel / Powder Metallurgy |
|---|---|---|---|
| Coating: | TiN, AT, AP | Processing: | Roughing, Semi-finishing,finishing, |
| Application: | For Gleason Gear Cutting Machine For OERLIKON Gear Cutting Machine | Dimension: | Φ32×L30×Ф13 M1 α21° Or To Be Customized |
| Standard: | German Sandard | Precision: | AAA,AA,DIN3968 |
| High Light: | Bevel Carbide Gear Hob,TiN Coating Carbide Gear Hob,Tungsten Carbide Carbide Hob |
||

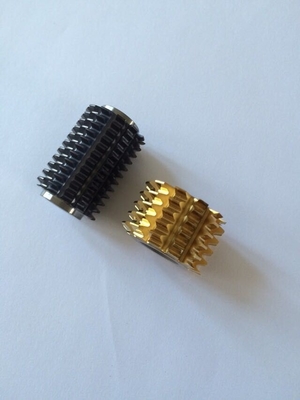

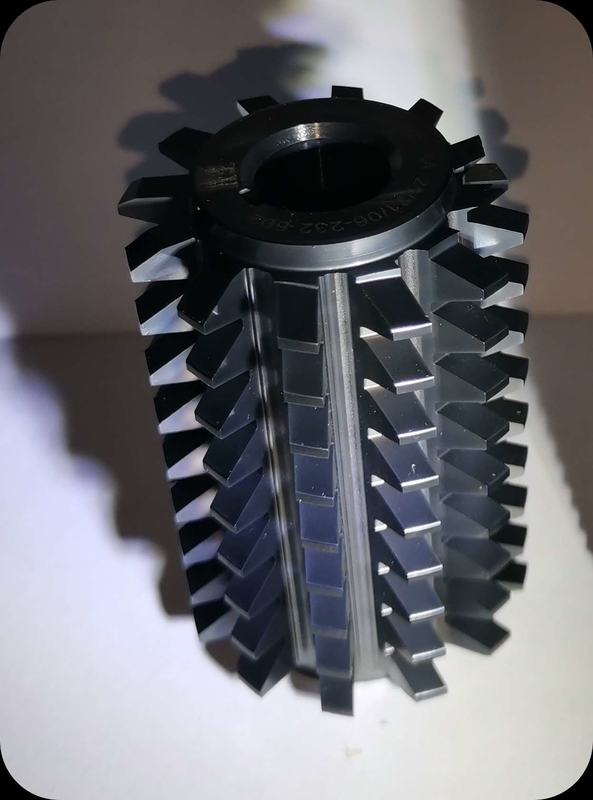

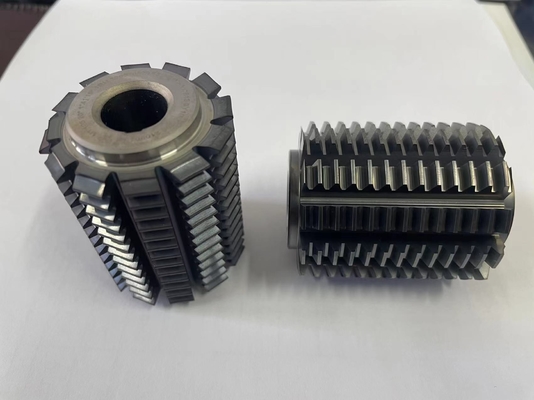

Carbide gear hobs brings you with higher efficiency of production than conventional HSS hobbing.
Specifications of Carbide Gear Hob
module : m0.2~m4
accuracy class : DIN3968 , class A / AA / AAA
Characteristics
• high cutting speeds
• short machining times
• a longer tool life than conventional HSS cutter
• time saving per piece for gear manufacture
• high productivity
| specification | ||||||
| m | ∅D | ∅d | L | ∅D1 | L | |
| 8type | 0.1~0.15 | 25 | 8 | 8 | 17.5 | 0.5 |
| 0.2~0.3 | 25 | 8 | 10 | 17.5 | 0.5 | |
| 0.35~0.8 | 25 | 8 | 12 | 17.5 | 0.5 | |
| 10type | 0.2~0.25 | 32 | 10 | 12 | 22.5 | 1 |
| 0.3~0.45 | 32 | 10 | 15 | 22.5 | 1 | |
| 0.5~1.0 | 32 | 10 | 20 | 22.5 | 1 | |
