Product Details:
|
| Category: | Spiral Bevel Gear Cutter | Description: | Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory |
|---|---|---|---|
| Material: | Tungsten Carbide, Cemented Carbide | Dimension: | Can Be Customized |
| Coating: | TiN, AT, AP, DURANA Coating | Precision: | AAA,AA,DIN3968 |
| Application: | Gleason Bevel Gear Cutting Machine,OERLIKON Bevel Gear Cutting Machine | Prcoessing Method: | Roughing, Semi-finishing, Finishing |
| High Light: | AAA Carbide Gear Cutter Blade,Spiral Bevel Gear Cutter Blade,Roughing Spiral Bevel Gear Cutters |
||

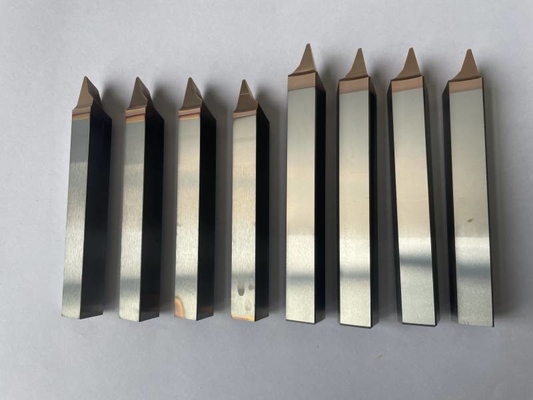

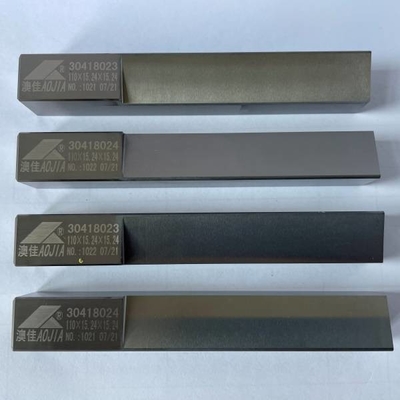

Carbide gear cutter blade for spiral bevel gear cutting from China factory
Spiral Bevel Gear Cutter Blade with high precision
Dimension: can be customized
Coating: TiN, AT, AP, DURANA coating is available
Carbide blade cutter head cutting speed meter
|
serial number
|
The diameter of the cutter head Time / mm |
cutting speed The ruler / cent |
main shaft speed Turn / points |
instruction |
| 1 |  "/Ø12.7 |
120 - 180
|
3000 - 4500 |
①.Currently only applies 1.1" to 2.75" cutter head," cutter head temporarily Can't apply ②. The spindle speed of the cutter head adopts 1:1.5 pulley deceleration, so Spindle speed up to 1890 rpm. ③. For 1.1" cutter head, 1.3" cutterhead, up to up to 200 m/min cutting speed, according to High speed 1890 rpm calculate. |
| 2 |
1.1"/Ø27.94
|
120 - 165
|
1360 - 1890 | |
| 3 |
11. 3"/ Ø33. 02
|
120 - 196
|
1150 = 1890 | |
| 4 |
1.5"/Ø38.1
|
120 - 200
|
1000 - 1670 | |
| 5 | 2. 0" /Ø50.8 |
120- 200
|
750 - 1250 | |
| 6 |
2.5"/ Ø63.5
|
120-200
|
600 - 1000 | |
| 7 |
2.75"/ Ø69.85
|
120- 200
|
550 - 910 |
