Product Details:
|
| Type: | Turning | Advantage: | High Quality |
|---|---|---|---|
| Color: | Silver | Grade: | Customer's Request |
| High Light: | Customized Silver CBN Turning Insert,Silver CBN Turning Insert,PCD Silver CBN Turning Insert |
||

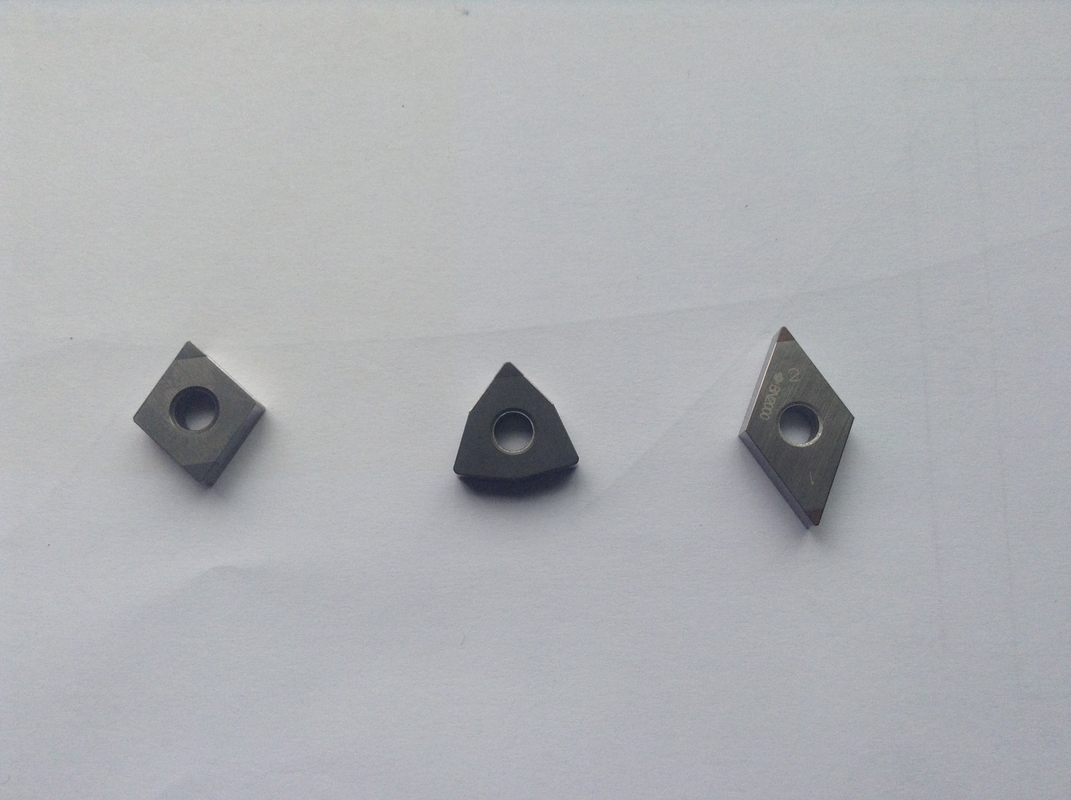

High Quality CBN Insert For Turning,Color As Picture
Zhuzhou Aohua Tools Co., Ltd. manufactured super-hard cutting tools demonstrate large varieties,including PCD bits/inserts,CBN inserts,solid CBN and ceramic etc.Those inserts show more advantages in applicability compared to carbide inserts. better performance with super-hard cutting tools willbe achieved inapplications where carbide inserts are challenged.
| SPECIFICATION DIAGRAM OF PCBN STANDARD INSERTS | |||||
| TYPE | TIP QTY | INSCRIBED CIRCLE | THICKNESS | INNER HOLE DIAMETER | RADIUS |
| 2-CNGA090302 | 2 | Φ9.525 | 3.18 | 3.81 | 0.2 |
| 2-CNGA090304 | 2 | Φ9.525 | 3.18 | 3.81 | 0.4 |
| 2-CNGA090306 | 2 | Φ9.525 | 3.18 | 3.81 | 0.6 |
| 2-CNGA090308 | 2 | Φ9.525 | 3.18 | 3.81 | 0.8 |
| 4-DNMA110402 | 4 | Φ9.525 | 4.76 | 3.8 | 0.2 |
| 4-DNMA110404 | 4 | Φ9.525 | 4.76 | 3.8 | 0.4 |
| 4-DNMA110406 | 4 | Φ9.525 | 4.76 | 3.8 | 0.6 |
| 4-DNMA110408 | 4 | Φ9.525 | 4.76 | 3.8 | 0.8 |
| 2-DCGW070202 | 2 | Φ6.35 | 2.38 | 2.8 | 0.2 |
| 2-DCGW070204 | 2 | Φ6.36 | 2.38 | 2.8 | 0.4 |
| 2-DCGW070206 | 2 | Φ6.37 | 2.38 | 2.8 | 0.6 |
| 2-DCGW070208 | 2 | Φ6.38 | 2.38 | 2.8 | 0.8 |
| 3-WNGA080404 | 3 | Φ12.7 | 4.76 | 5.16 | 0.4 |
| 3-WNGA080406 | 3 | Φ12.7 | 4.76 | 5.16 | 0.6 |
| 3-WNGA080408 | 3 | Φ12.7 | 4.76 | 5.16 | 0.8 |
| 3-WNGA080410 | 3 | Φ12.7 | 4.76 | 5.16 | 1.0 |
| 3-WNGA080412 | 3 | Φ12.7 | 4.76 | 5.16 | 1.2 |
| 6-WNGA080404 | 6 | Φ12.7 | 4.76 | 5.16 | 0.4 |
| 6-WNGA080406 | 6 | Φ12.7 | 4.76 | 5.16 | 0.6 |
| 6-WNGA080408 | 6 | Φ12.7 | 4.76 | 5.16 | 0.8 |
| 6-WNGA080410 | 6 | Φ12.7 | 4.76 | 5.16 | 1.0 |
