| With Or Without Round Holes: | Round Hole | DENSITY: | 14.4 |
|---|---|---|---|
| HARDNESS HRA: | 91.5 | TRS MPa: | 1960 MPa |
| High Light: | 1960 MPa Lathe Cutting Blades,Semi Finishing Lathe Cutting Blades,Semi Finishing 1960 MPa Lathe Cutting Blades |
||
Cnc Blade YS2T
| ISO CODE | GRADE | PHYSICAL AND MECHANICAL PROPERTIES | APPLICATIONS RECOMMENDED | ||||
| DENSITY | HARDNESS HRA | TRS MPa | |||||
| M10 | YW3 | 12.9 | 92 | 1390 | suitable for the finishing and semi-sinishing of stainless steel and conventional alloy steel |
||
| YW1 | 13 | 91.5 | 1290 | ||||
| M20 | YM201 | 13.9 | 93 | 1600 | the grade can be used for the semi-finishing of stainless steel and low-alloy steel. |
||
| YS2T | 14.4 | 91.5 | 1960 | ||||
| YW2 | 12.9 | 90.5 | 1460 | ||||
| M30 | YM30 | 14.5 | 91.5 | 2000 | suitaboe for the roughing of heat-resistant alloys. | ||
| K05 | YG3X | 15.1 | 91.5 | 1300 | suitable for the finishing of cast iron and nonferrous metals. |
||
| YG3X | 15.0 | 90.5 | 1300 | ||||
| K10 | YM201 | 13.9 | 93 | 1600 | for the finishing, semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
||
| YG6X | 14.8 | 91 | 1560 | ||||
| K20 | YD201 | 14.89 | 91 | 1800 | suitable for the semi-finishing and roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
||
| YG6X | 14.9 | 89.5 | 1670 | ||||
| YG8 | 14.6 | 89 | 1840 | ||||

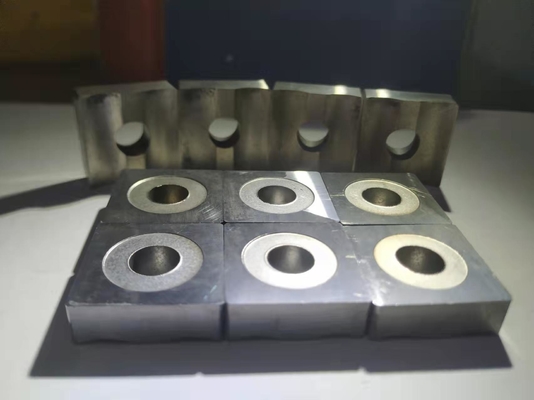

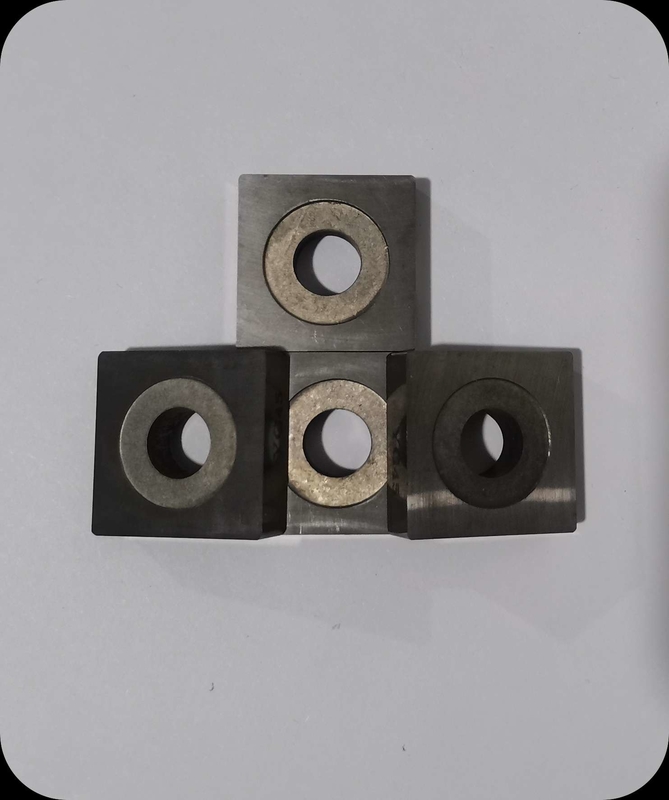

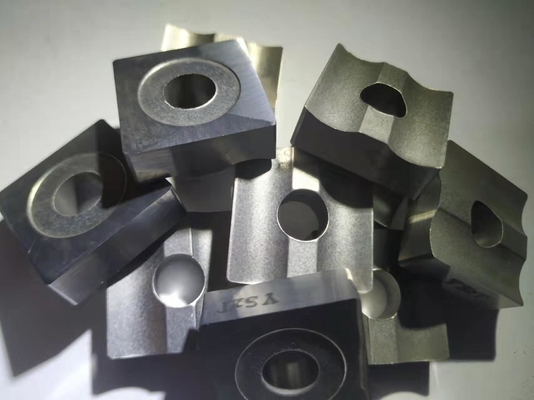

Product pictures, welcome to order!
