Product Details:
|
| Material: | Carbide | Whether To Import: | No |
|---|---|---|---|
| Coating: | Yes | Precision: | High Precision |
| ODM: | Available | ||
| High Light: | Coated Carbide Cutting Tools,1890 Rpm Carbide Cutting Tools,ODM High Precision Cutting Tools |
||

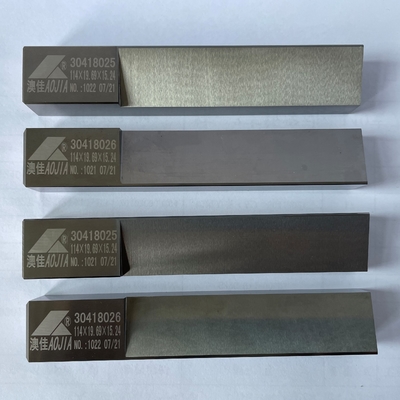

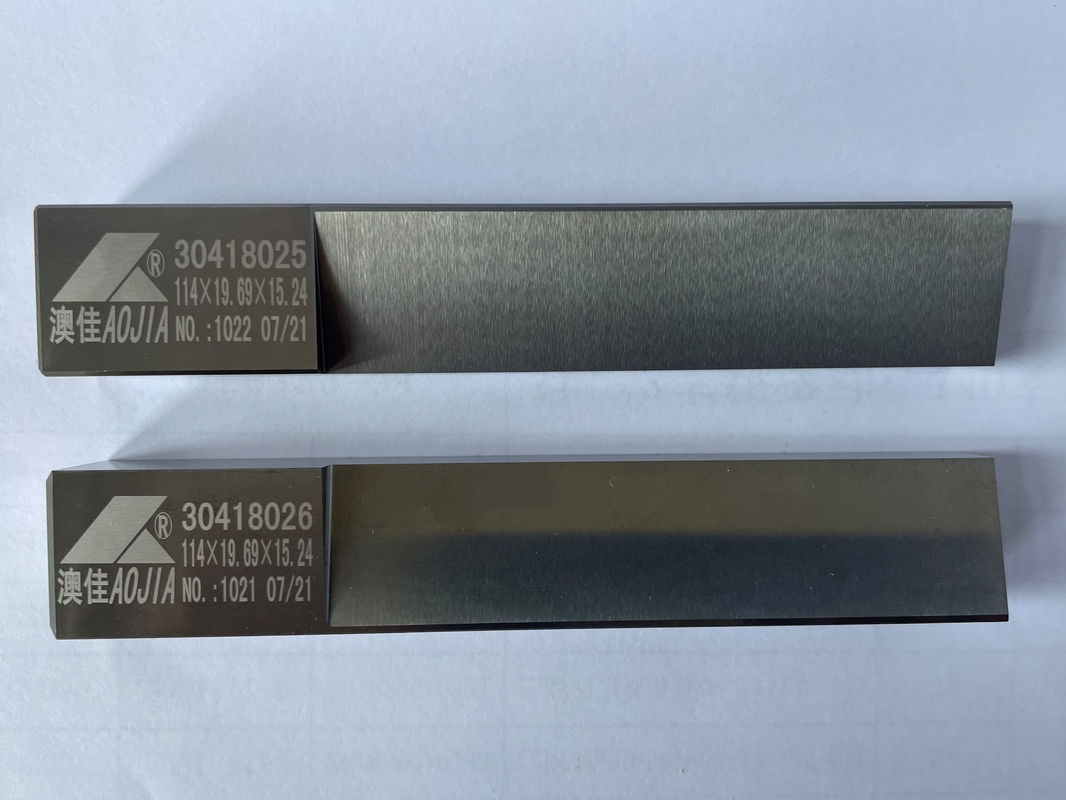

Carbide Cutting Tools---114×19.69×15.24
The above is the size chart, the picture is for reference only
Carbide blade cutter head cutting speed meter
serial number
| The diameter of the cutter head Time / mm | cutting speed The ruler / cent | main shaft speed Turn / points | instruction |
| 1 |  "/Ø12.7 | 120 - 180
| 3000 - 4500 | ①.Currently only applies 1.1" to 2.75" cutter head," cutter head temporarily Can't apply ②. The spindle speed of the cutter head adopts 1:1.5 pulley deceleration, so Spindle speed up to 1890 rpm. ③. For 1.1" cutter head, 1.3" cutterhead, up to up to 200 m/min cutting speed, according to High speed 1890 rpm calculate. |
| 2 | 1.1"/Ø27.94
| 120 - 165
| 1360 - 1890 | |
| 3 | 11. 3"/ Ø33. 02
| 120 - 196
| 1150 = 1890 | |
| 4 | 1.5"/Ø38.1
| 120 - 200
| 1000 - 1670 | |
| 5 | 2. 0" /Ø50.8 | 120- 200
| 750 - 1250 | |
| 6 | 2.5"/ Ø63.5
| 120-200
| 600 - 1000 | |
| 7 | 2.75"/ Ø69.85
| 120- 200
| 550 - 910 |
The maximum spindle speed is 1890 rpm, and the maximum cutting speed of the 1.1" cutter head can reach 165 cm/min.
The 1.3" cutter head can reach a maximum of 196 m/min, which basically meets the cutting requirements of carbide knives.
