Straight Tooth ODM Gear Shaper Cutter Class A High Speed Steel

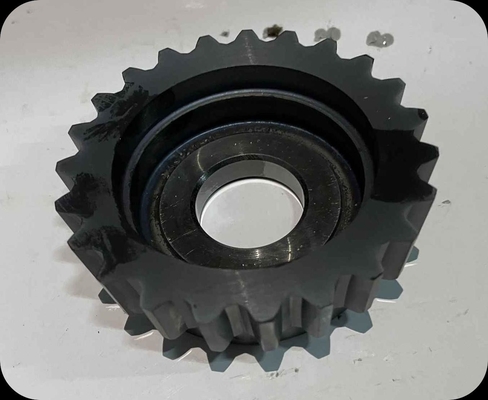

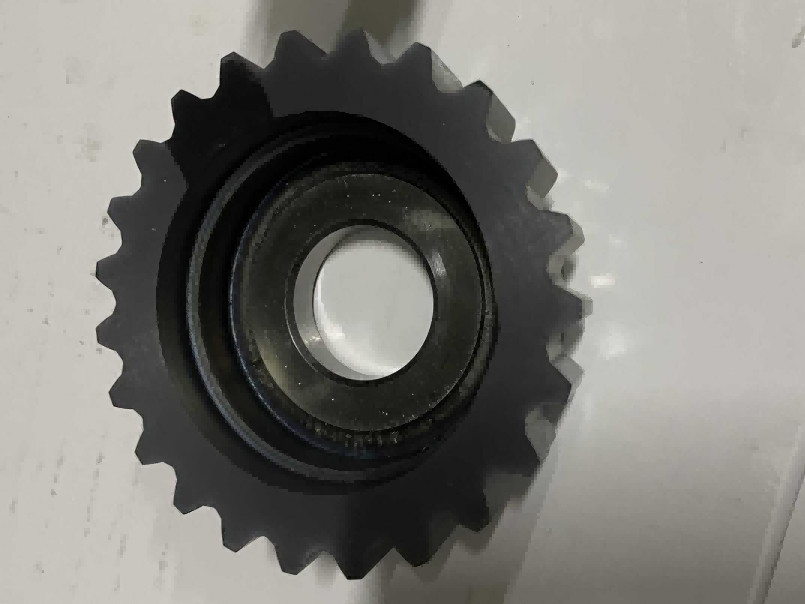

Straight Tooth Gear Shaper Cutter

The company has perfect design, development, testing and production capabilities, and its technology and product quality are at the industry level.

Product Name: Taper Shank Gear Shaping Machine
Accuracy class: A class
Processing material: high speed steel
A gear shaper is a gear-shaped or rack-shaped gear processing tool. Shaper cutters are used to machine internal and external meshing spur gears and helical cylindrical gears according to the generation method (see gear machining). The characteristic of the gear shaper is that it can process shoulder gears, multi-stage gears and herringbone gears without empty grooves. The special-shaped gear shaper can also process other workpieces of various shapes.
Gear shaper knives are divided into four types: disc, bowl, cylinder and taper shank. The disc gear shaper is mainly used for processing internal and external meshing spur gears, gear shaper helical gears and herringbone gears. The bowl shaper mainly processes spur gears with shoulders and multiple internal and external meshing. It differs from the disc shaper in that the nut for clamping can be accommodated in the body of the shaper. Therefore, processing is not hindered. The cylindrical gear shaper is used to process internal gears and small external gears, which are screwed on the main shaft of the gear shaper through the thread of the inner hole. The taper shank gear shaper is mainly used for processing internal meshing spur gears and helical gears.
