Product Details:
|
| Outer-Ø[mm: | 3 | Normal Modul[mm: | 3 |
|---|---|---|---|
| Processing: | Finishing | ||
| High Light: | Cemented Carbide Milling Cutters,Heat Resistant Carbide Milling Cutters,Finishing Milling Cutter Blade |
||

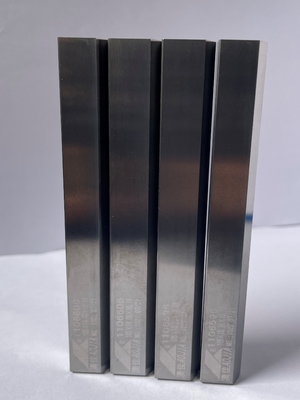

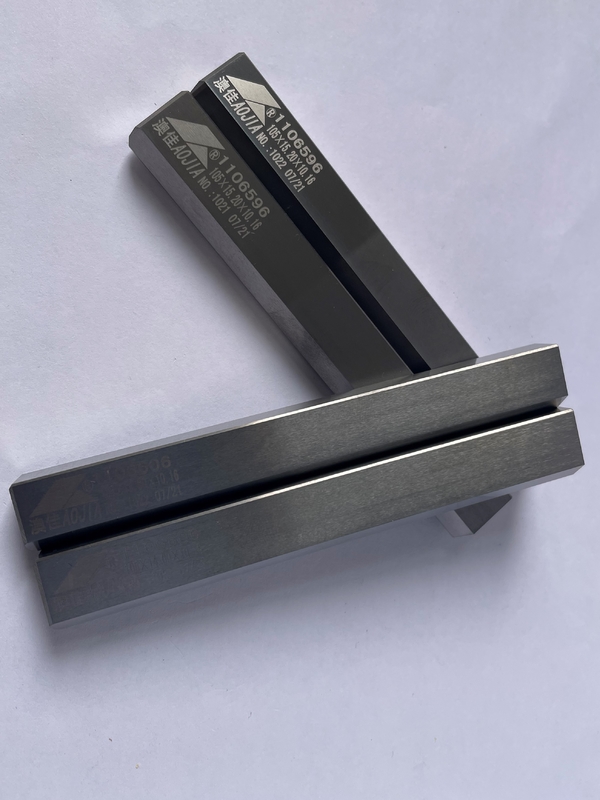

Carbide Milling Cutter Blade---105×15.20×10.16
| coating type | color | hardness | thickness | CIF | highest temperature | |
| TiN | GOLDEN YELLOW | 2400 | 1~7 | 0.35 | 600 | |
| TiCN | BLUISH-GREY | 3700 | 1~4 | 0.2 | 400 | |
| TiCN-MP | RED-COPPER | 3200 | 1~4 | 0.2 | 400 | |
| TiALN | PURPLISH-RED | 3300 | 1~4 | 0.4 | 800 | |
| CrN | SLIVER | 1800 | 1~7 | 0.3 | 700 | |
| ACO | DARK GREY | 4400 | 1~4 | 0.3 | 1100 | |
| TiCrN | SLIVER/GOLD | 3000 | 1~7 | 0.4 | 600 | |
| XT | GREY-BLACK | 4100 | 0.5~6 | 0.25 | 1100 | |
| DLC | GREY-BLACK | 2000 | 1~3 | 0.1 | 400 | |
| MDT | ROSE-PURPLE | 4000 | 1~4 | 0.25 | 800 | |
Cemented carbide is an alloy material made of hard compound of refractory metal and bonding metal through powder metallurgy process.
Cemented carbide has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500 °C , still has high hardness at 1000℃.
Carbide is widely used as tool material, such as turning tools, milling cutters, planers, drills, boring tools, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fibers, graphite, glass, stone and ordinary steel, and can also be used for cutting Difficult-to-machine materials such as heat-resistant steel, stainless steel, high manganese steel, tool steel, etc.
