Product Details:
|
| Grade: | YG8 | Material: | Carbide |
|---|---|---|---|
| Hole: | Round Hole | ||
| Highlight: | YG8 Carbide Milling Cutters,Round Hole Carbide Milling Cutters |
||

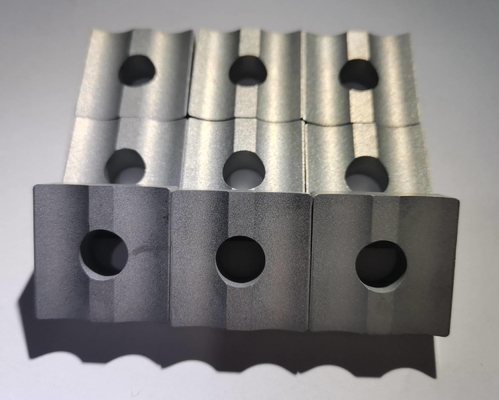

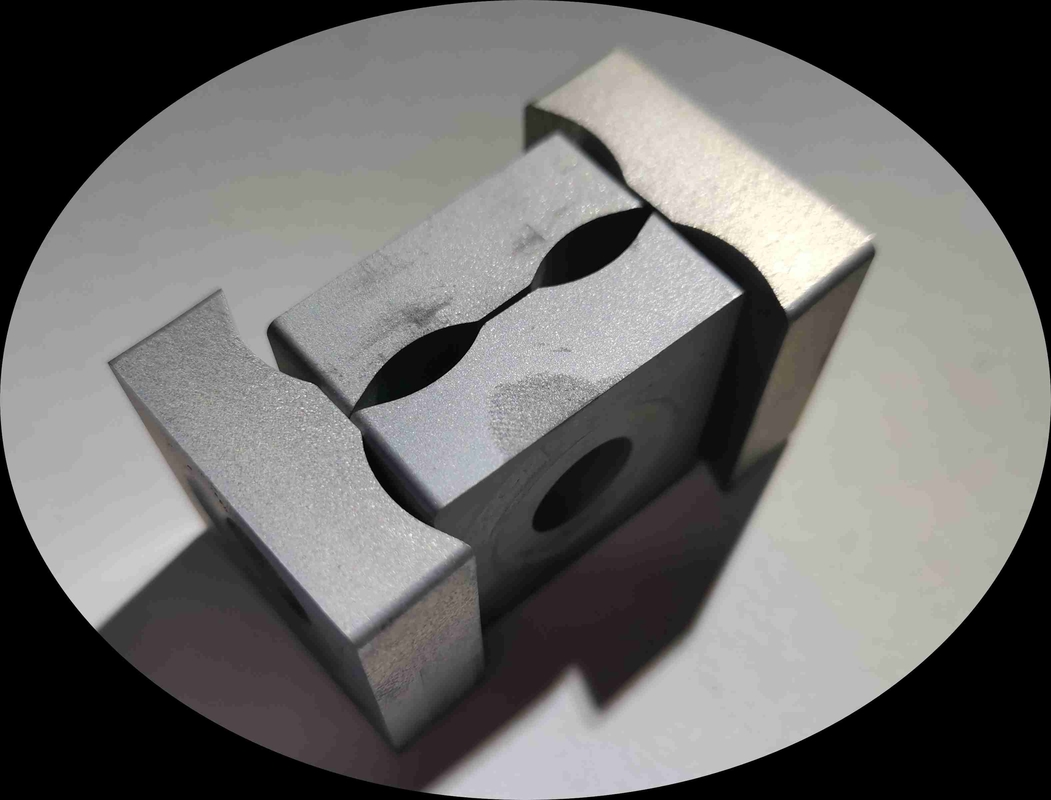

YG8 Carbide Milling Cutters 42510H10
| ISO CODE | GRADE | PHYSICAL AND MECHANICAL PROPERTIES | APPLICATIONS RECOMMENDED | ||||
| DENSITY | HARDNESS HRA | TRS MPa | |||||
| M10 | YW3 | 12.9 | 92 | 1390 | suitable for the finishing and semi-sinishing of stainless steel and conventional alloy steel |
||
| YW1 | 13 | 91.5 | 1290 | ||||
| M20 | YM201 | 13.9 | 93 | 1600 | the grade can be used for the semi-finishing of stainless steel and low-alloy steel. |
||
| YS2T | 14.4 | 91.5 | 1960 | ||||
| YW2 | 12.9 | 90.5 | 1460 | ||||
| M30 | YM30 | 14.5 | 91.5 | 2000 | suitaboe for the roughing of heat-resistant alloys. | ||
| K05 | YG3X | 15.1 | 91.5 | 1300 | suitable for the finishing of cast iron and nonferrous metals. |
||
| YG3X | 15.0 | 90.5 | 1300 | ||||
| K10 | YM201 | 13.9 | 93 | 1600 | for the finishing, semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
||
| YG6X | 14.8 | 91 | 1560 | ||||
| K20 | YD201 | 14.89 | 91 | 1800 | suitable for the semi-finishing and roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
||
| YG6X | 14.9 | 89.5 | 1670 | ||||
| YG8 | 14.6 | 89 | 1840 | ||||
| type | dimension(mm) | Basic grades | ||||||||||||||||||||||||||
| ∅D Tol. | C ±0.13 | ∅d ±0.13 | r | a≈ | P | M | K | |||||||||||||||||||||
| 41005H | 10±0.08 | 3.5 | 4.2 | 0.5 | 2.4 | YNG151 | YT05 | YT15 | YC201 | YT14 | YT5 | YC45 | YS8 | YS2T | YW1 | YW3 | YM201 | YW2 | YM30 | YG3X | YG3 | YM201 | YG6X | YG6 | YD201 | YG8 | ||
| 41305H | 13±0.13 | 4.5 | 5.2 | 0.5 | 3.4 | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ||||||||||||||||
| 41605H | 16±0.18 | 5.5 | 6.2 | 0.5 | 4.4 | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ✬ | ||||||||||||||||
| 41605H6 | 16±0.18 | 5.5 | 6.2 | 0.5 | 6 | ✬ | ✬ | ✬ | ✬ | |||||||||||||||||||
| 41905H | 19±0.18 | 7.0 | 7.2 | 0.5 | 5.4 | ✬ | ✬ | ✬ | ||||||||||||||||||||
| 41910H | 19±0.18 | 7.0 | 7.2 | 1.0 | 5.4 | ✭ | ✬ | ○ | ||||||||||||||||||||
| 41910H7 | 19±0.19 | 7.0 | 7.2 | 1.0 | 7 | ✬ | ○ | ✬ | ||||||||||||||||||||
| 42210H8 | 22±0.25 | 8.5 | 8.2 | 1.0 | 8 | ✬ | ○ | ✬ | ||||||||||||||||||||
| 42510H7 | 25±0.25 | 9.5 | 8.2 | 1.0 | 7 | ✬ | ○ | ✬ | ||||||||||||||||||||
| 42510H8 | 25±0.25 | 10.5 | 8.2 | 1.0 | 8 | ✬ | ✬ | |||||||||||||||||||||
| 42510H10 | 25±0.26 | 11.5 | 9.12 | 1.0 | 10 | ✬ | ✬ | |||||||||||||||||||||
