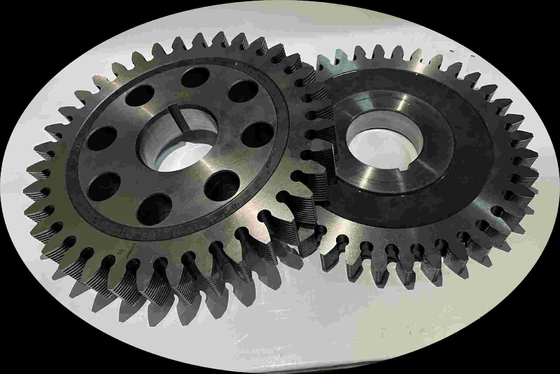

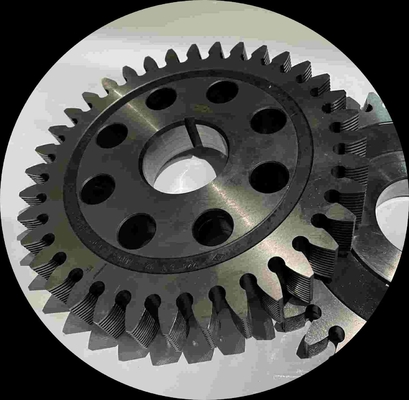

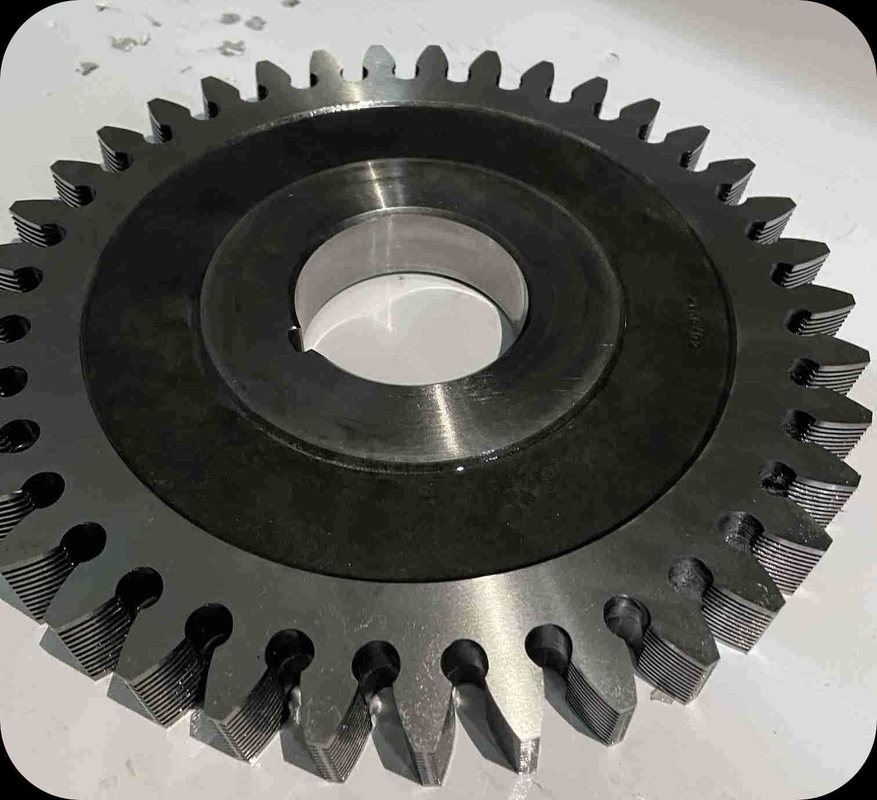

66mm Thickness Gear Shaving Tool Axial Razor Φ100 - Φ360 CNC Gear Cutting

 Gear Shaving Cutter Φ100 ～ Φ360

When shaving teeth, the movement trajectory of the blade tip of the new shaving cutter and the regrind shaving cutter at the root of the gear. The relationship between the effective involute starting circle diameter and the shaved starting circle diameter of the involute

The main difference between axial shaving cutter and radial shaving cutter

The picture on the left is the arrangement of the chip flutes of the axial shaving cutter; the picture on the right is the arrangement of the flutes of the radial shaving cutter
