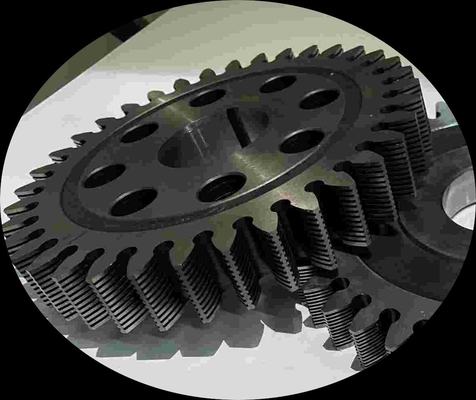

Assembled Module CNC Gear Cutting black With Single Edged Razor

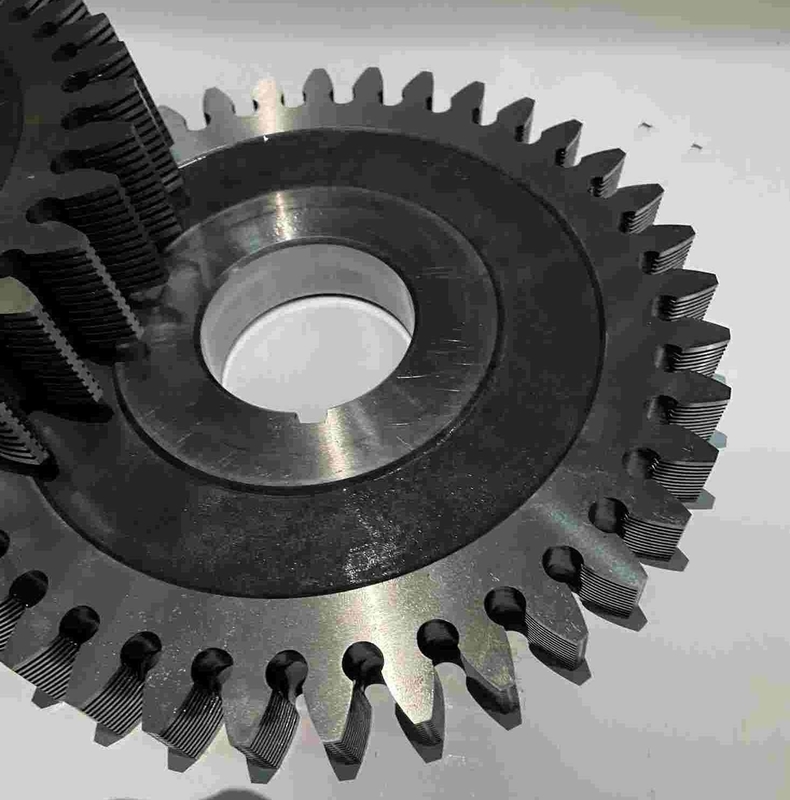

High Quality Gear Shaving Cutter

Assembled superhard material single-edged razor
1. An assembled superhard material single-edged shaving knife is mainly composed of a cutter body, a lamination, a gland, a fastening screw and an adjustment mechanism. The lamination is made of superhard material cubic boron nitride or diamond, The lamination plane is perpendicular to the axis and is sleeved on the cutter body. It is characterized in that the laminations sleeved on the cutter body 7 are gear-shaped laminations. When the tooth thickness is not adjusted, only three pieces are installed, one is the cutting piece 5, and the other two pieces are Guide piece 3, its cutting piece is located in the middle of the entire thickness of the cutter teeth, and its two guide pieces 3 are placed at equal distances on both sides of the cutting piece 5, and the cutting piece 5 and the guide piece 3 are separated by pads 4 and 6 respectively. , and use the positioning pin 8 for positioning; if the tooth thickness needs to be adjusted, the cutting piece 5 and the guide piece 3 are each composed of two laminations, and a total of six gear-shaped laminations are installed, that is, the adjustable cutting piece 11 and adjustable The guide piece 9 is provided, and the odd-numbered laminations are each positioned by a positioning pin 8. The odd-numbered laminations 1, 3, and 5 form the left tooth profile 14, and the even-numbered laminations 2, 4, and 6 form the right tooth profile 15. Some two screw holes 12 of the single-size laminations and some two corresponding screw holes 13 of the double-size laminations form two adjustment holes, and the two adjustment holes are separated by 180°, that is, the two adjustment holes are located in the same gear-shaped laminations. On the diameter, it is finally fastened by the gland and screw 2.
