Product Details:
|
| Size: | 105×12.70×10.16 | Coating: | AT/AP |
|---|---|---|---|
| Thickness: | 10.16 | Sample Or Spot Goods: | Spot Goods |
| High Light: | 10.16mm Carbide Milling Cutters,Corrosion Resistant Carbide Milling Cutters,AT Coated Milling Cutter |
||

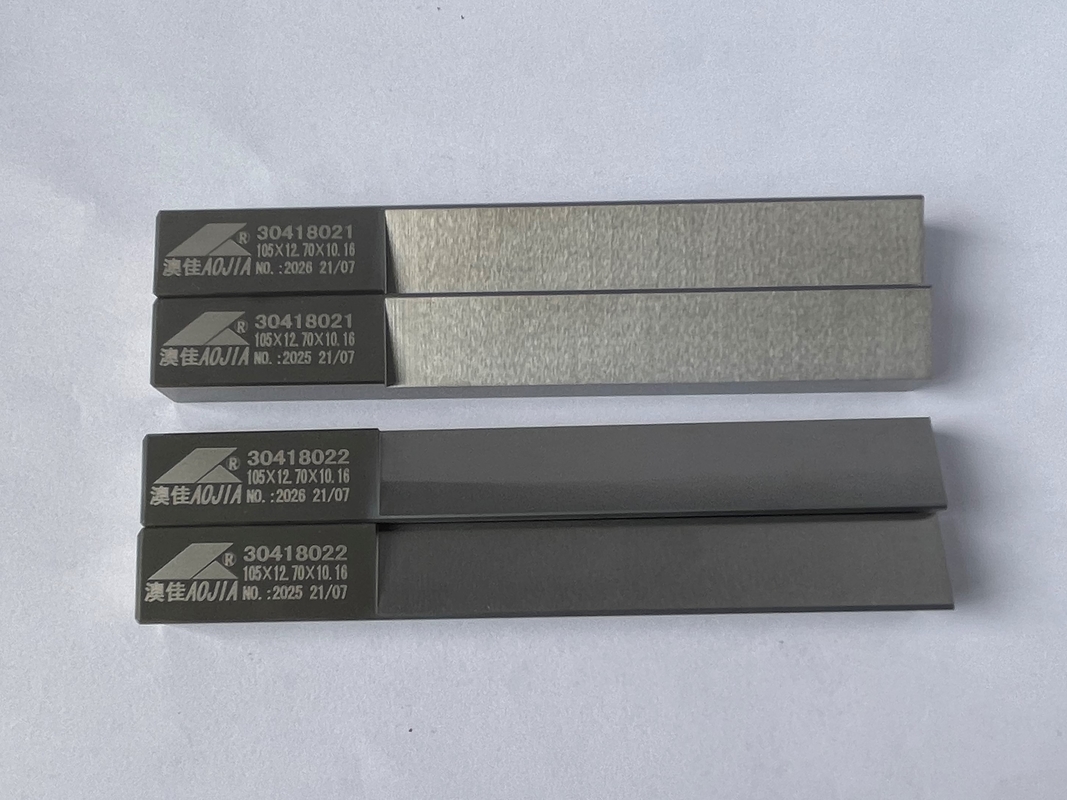

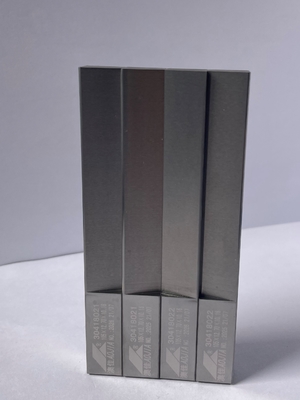

AT Coating Carbide Cutting Tools---105×12.70×10.16
Advantage
Cemented carbide has high hardness, strength, wear resistance and corrosion resistance, known as "industrial teeth", used to manufacture cutting tools, cutting tools, cobalt tools and wear-resistant parts, widely used in military, aerospace , machining, metallurgy, oil drilling, mining tools, electronic communications, construction and other fields, with the development of downstream industries, the market demand for cemented carbide continues to increase. And in the future, the manufacturing of high-tech weapons and equipment, the progress of cutting-edge science and technology, and the rapid development of nuclear energy will greatly increase the demand for high-tech and high-quality and stable carbide products.
| Cutter cutting speed table for carbide inserts | ||||||
| serial number | Cutter diameter | cutting speed | Spindle speed | instruction | ||
| 1 | 0.5"/Φ12.7 | 120-180 | 3000-4500 | For 1.1" cutter head, 1.3" cutter head, the cutting speed of 200 m/min can not be achieved, it can be calculated according to the maximum speed of 1890 rpm |
||
| 2 | 1.1"/Φ27.94 | 120-165 | 1360-1890 | |||
| 3 | 1.3"/Φ33.02 | 120-196 | 1150-1890 | |||
| 4 | 1.5"/Φ38.10 | 120-200 | 1000-1670 | |||
| 5 | 2.0"/Φ50.8 | 120-200 | 750-1250 | |||
| 6 | 2.5"/Φ63.5 | 120-200 | 600-1000 | |||
| 7 | 2.75"/Φ69.85 | 120-200 | 550-910 | |||
