Product Details:
|
| Thickness: | 15.24 | Size: | 110×15.24×15.24 |
|---|---|---|---|
| Material: | Carbide | Coating: | AT/AP |
| High Light: | AP Coating Carbide Milling Cutters,Abrasion Resistant Carbide Milling Cutters,Abrasion Resistant Carbide Cutting Blades |
||

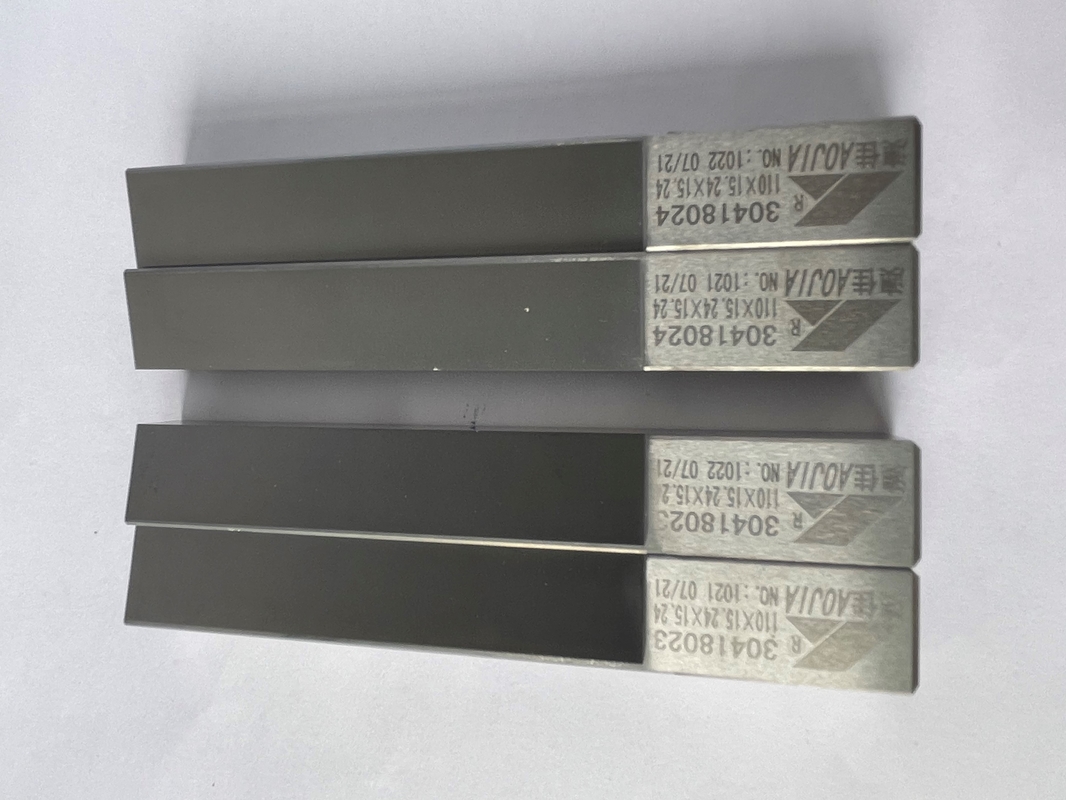

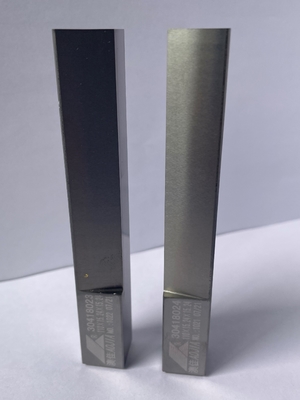

Carbide Cutting Tools With AT/AP Coating ---110×15.24×15.24
Performance characteristics
High hardness (86～93HRA, equivalent to 69～81HRC);
Good thermal hardness (up to 900～1000℃, keep 60HRC);
Good abrasion resistance.
Carbide cutting tools are 4 to 7 times faster than high-speed steel, and the tool life is 5 to 80 times higher. Manufacturing molds and measuring tools, the service life is 20 to 150 times higher than that of alloy tool steel. It can cut hard materials of about 50HRC.
However, cemented carbide is brittle and cannot be machined, and it is difficult to make integral tools with complex shapes. Therefore, blades of different shapes are often made, which are installed on the tool body or mold body by welding, bonding, mechanical clamping, etc.
GRADES OF CEMENTED CARBIDE RODS AND BARS
| ISO CORRESPONDING | WC% | Co% | Density g/cm3 | Hardness HRA | TRS N/mm2 | WC grain size |
| K10 | 94 | 6 | 14.90 | 92.5 | >=3000 | FINE GRAIN |
| K05-K10 | 94 | 6 | 14.85 | 93.0 | >=3500 | ULTRA-FINE GRAIN |
| K20-K30 | 92 | 8 | 14.65 | 92.6 | >=3600 | ULTRA-FINE GRAIN |
| K30-K40 | 90 | 10 | 14.45 | 92.0 | >=3800 | ULTRA-FINE GRAIN |
| K30-K40 | 90 | 10 | 14.40 | 91.5 | >=4000 | ULTRA-FINE GRAIN |
| K05-K10 | 94 | 6 | 14.70 | 93.5 | >=3500 |
SUPER-FINE GRAIN
|
| K30-K40 | 90 | 10 | 14.35 | 92.5 | >=3800 |
SUPER-FINE GRAIN
|
| K40 | 88 | 12 | 14.15 | 92.3 | >=4300 |
SUPER-FINE GRAIN
|
The content of tungsten and cobalt is nominal value, the density and hardness are typical values, just for your information.
