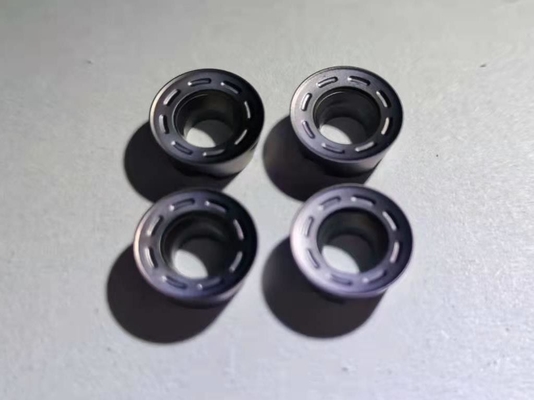

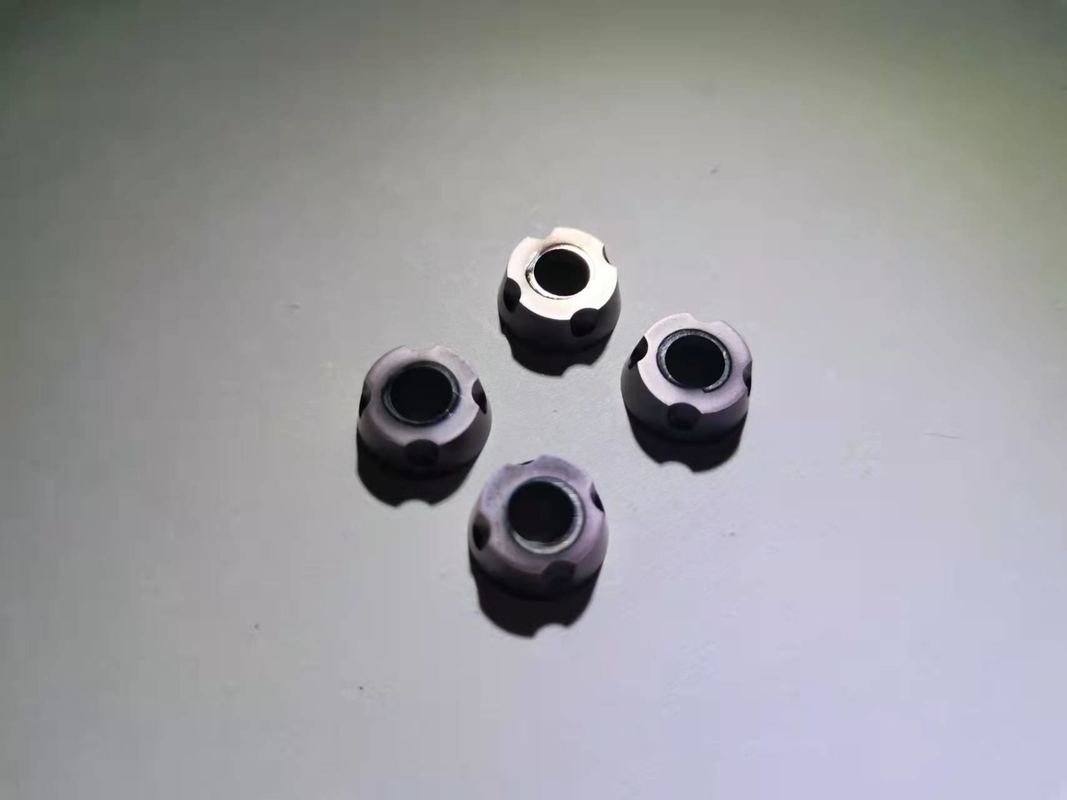

Product Details:
|
| ISO CODE: | AP1215 | Material: | Carbide |
|---|---|---|---|
| Product Name: | Carbide Cutting Tools AP1215 1890 Rpm Spindle Speed | Precision: | High Precision |
| High Light: | ISO Carbide Cutting Tools,1890 Rpm Carbide Cutting Tools,200m/min Carbide Cutting Tools |
||
Carbide blade cutter head cutting speed meter
|
serial number |
The diameter of the cutter head Time / mm |
cutting speed The ruler / cent |
main shaft speed Turn / points |
instruction |
| 1 |  "/Ø12.7 |
120 - 180
|
3000 - 4500 |
①.Currently only applies 1.1" to 2.75" cutter head," cutter head temporarily Can't apply ②. The spindle speed of the cutter head adopts 1:1.5 pulley deceleration, so Spindle speed up to 1890 rpm. ③. For 1.1" cutter head, 1.3" cutterhead, up to up to 200 m/min cutting speed, according to High speed 1890 rpm calculate. |
| 2 |
1.1"/Ø27.94
|
120 - 165
|
1360 - 1890 | |
| 3 |
11. 3"/ Ø33. 02
|
120 - 196
|
1150 = 1890 | |
| 4 |
1.5"/Ø38.1
|
120 - 200
|
1000 - 1670 | |
| 5 | 2. 0" /Ø50.8 |
120- 200
|
750 - 1250 | |
| 6 |
2.5"/ Ø63.5
|
120-200
|
600 - 1000 | |
| 7 |
2.75"/ Ø69.85
|
120- 200
|
550 - 910 |
The maximum spindle speed is 1890 rpm, and the maximum cutting speed of the 1.1" cutter head can reach 165 cm/min.
The 1.3" cutter head can reach a maximum of 196 m/min, which basically meets the cutting requirements of carbide blades.
