Product Details:
|
| ISO CORRESPONDING: | P10-35 | PVC: | 340M/MIN(280-440) |
|---|---|---|---|
| PFN: | 0.35mm/r(0.25~0.7) | ||
| High Light: | AL2O3 Coating Solid Carbide Cutter,P35 Solid Carbide Cutter,P10 Carbide Cutter Tool |
||

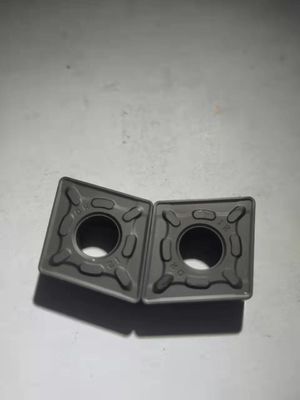

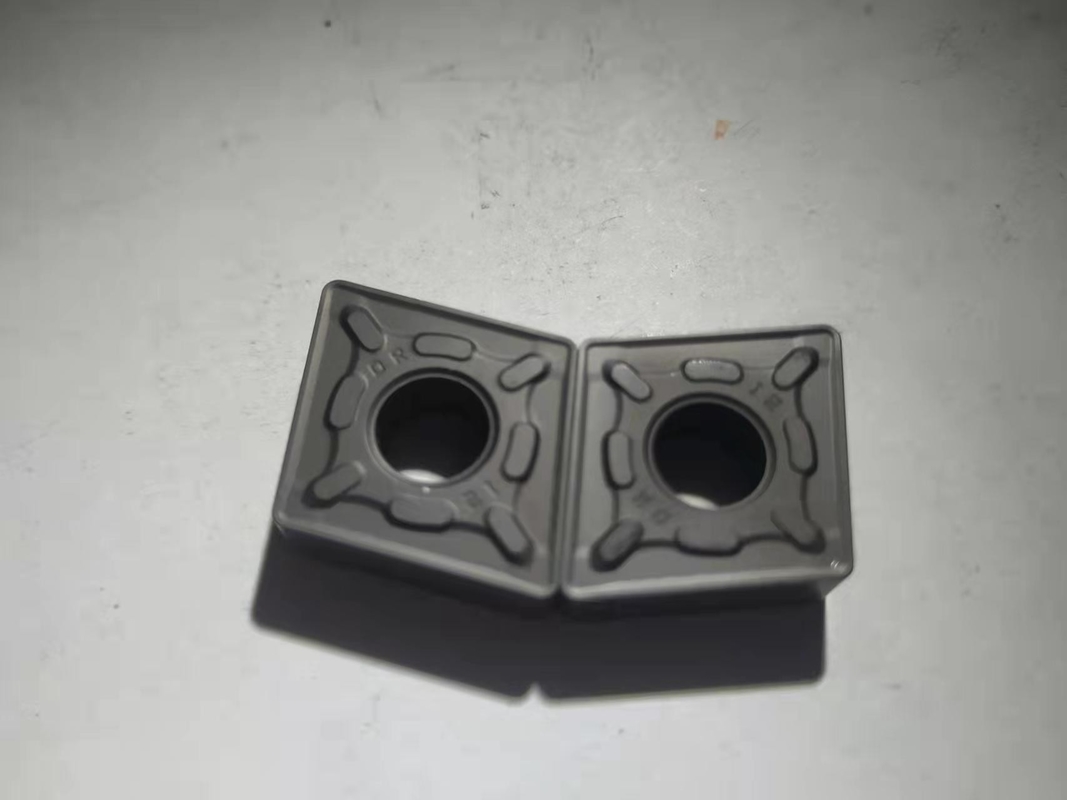

Carbide Cutting Tools----CNMG190612-DR
YBC252 adopts thick TICN and thick AL2O3 coating, which has strong plastic deformation resistance and edge strength. It is a general selection grade of steel from finishing to roughing. It has stable performance under high removal rate cutting parameters or harsh working conditions, and can achieve more green and environmentally friendly dry cutting. The cutting speed can be increased by more than 25%, and the tool life can be increased by more than 30% at the same cutting speed.
| Application of cemented carbide for turning | ||||||||||
| uncoated | ||||||||||
| GRADE | APPLICATIONS | |||||||||
| P10 | Excellent in wear resistance, strength and red hardness. semi-finishing and the finishing of steel, cast steel forgeable cast iron and continuous nodular cast iron, also suitable for copying, threading and milling. |
|||||||||
| P20 | High in impact resistance and strength. Roughing and semi finishing of steel, cast steel, forgeable cast iron and nodular cast iron. |
|||||||||
| P25 | Good toughness.Rough turning,milling,planning and depth drilling ofcarbon steel,cast steel,manganese steel and alloy steel. |
|||||||||
| P35 | A versatile grade,high in red hardness,strength and resistance to impact and thermal shocking.Roughing and strong cutting of steel and cast steel. |
|||||||||
| P40 | Suitable for the finishing and semi-finishing of cast iron and non-ferrous metals. Also be used for machining of such hard materials as manganese steel and hardening steel. |
|||||||||
| M20 | High in red hardness and strength inuse,capable of resisting high impact load.Semi-finishing or finishing of refractory steel,high manganese steel,austenitic stainless steel,also machining of cast iron. |
|||||||||
| M30 | High strength in use,capable of resisting high impact load.Roughing and semi-finishing of refractory steel,high manganese steel,stainless steel,etc. |
|||||||||
| K10 | Fine-grained alloy,good wear resistance and high strenth. Semi-finishing and finishing of cast iron and nonferrous metals.It's the unique material for making of solid carbide tools for holing. |
|||||||||
| K20 | High wear resistance,excellent impact and shock resistence. Roughing and semi-finishing of cast iron,chilled cast iron,low alloy cast iron,nonferrous metals and non-metallic materials. |
|||||||||
| With high hardness and strenth.It is an ideal material for making boring tips and solid carbide tools for holing.Suitable for semi-finishing and roughing of cast iron and non-ferrous metals of all kinds. |
||||||||||
| K30 | Higher impact and shock resistance.Roughing of marble,plastic as well as non-ferrous metals.Such as copper aluminum and cast iron. |
|||||||||
| Fine grain grade . Excellent wear resistance, high in strength and impact resistance. Machining of cast irons, nonferrous metals, and non- metallic Materials. It's unique material of solid carbide tools for holing. |
||||||||||
